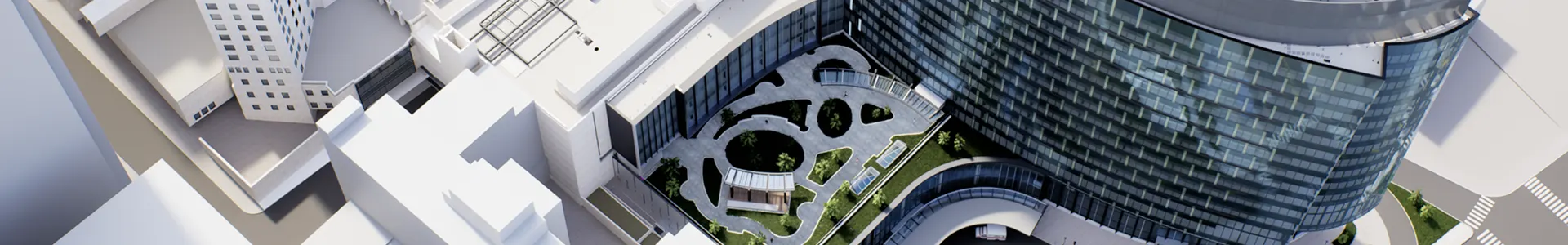

Professional BIM & VDC Services for Healthcare Projects

Electrical Coordination Challenges in Healthcare Projects

Healthcare facilities concentrate more electrical systems per square foot than nearly any other building type. Every room classification — ORs on essential power, ICUs on life safety branch, patient rooms on normal branch — creates a distinct conduit and panel routing requirement, and all of it has to be modeled at a level of accuracy that survives both code review and field inspection.

• Critical Power Reliability — Healthcare projects require separate branch circuits for life safety, critical branch, and equipment branch, per NFPA 99. Modeling each branch independently, tracing them from transfer switches to end devices, and verifying separation throughout the building is a coordination task that has no margin for error.
• Complex Emergency Power Systems — Generator feeders, ATS gear, and the downstream distribution serving emergency loads often run long distances through congested corridors and mechanical chases. Routing these feeders while maintaining required separation from normal power systems requires precise 3D modeling — not just schematic intent.
• Coordination with Medical Equipment — Imaging suites, surgical robots, and cardiac catheterization labs arrive with manufacturer-specific electrical and clearance requirements. These have to be modeled against the architectural and structural model early, because the infrastructure feeding them — dedicated panels, isolated ground circuits, shielded conduit — is expensive to reroute once construction is underway.
• Strict Code and Safety Compliance — NFPA 70, NFPA 99, and The Joint Commission requirements interact in ways that affect routing decisions directly. Wet location ratings, ground fault protection requirements, and branch circuit separation rules have to be visible in the model, not handled as a field judgment call.
• Low-Voltage and Technology System Integration — Nurse call, patient monitoring, building automation, and security systems run through the same ceiling spaces as power and lighting. On dense floors, coordinating cable tray routing for low-voltage alongside power conduit — without violating separation requirements — is one of the tighter spatial problems on a healthcare job.
• Accurate As-Built Documentation — Healthcare facilities undergo renovations on live floors. A model that accurately reflects installed conditions — panel schedules, conduit paths, device locations — becomes the foundation for every future phased project. Delivering a construction-accurate BIM model at closeout is a direct project deliverable, not a nice-to-have.

How We Approach Electrical BIM for Healthcare Projects

Healthcare BIM work is not a scaled-up version of commercial BIM work. The branch circuit separation requirements, the equipment room density, and the coordination complexity with 10 or more other trades demand a modeling approach built specifically for this environment.

Conduit & cable tray routing. Ceiling space in a hospital corridor is among the most contested real estate on any construction project. HVAC, plumbing, medical gas, fire suppression, and multiple electrical systems compete for the same 18 inches of plenum. SJS models conduit and cable tray runs in full 3D at an LOD 400 level of detail, with support hangers and bend allowances included, so routing decisions made in the model translate directly to field installation without re-engineering.

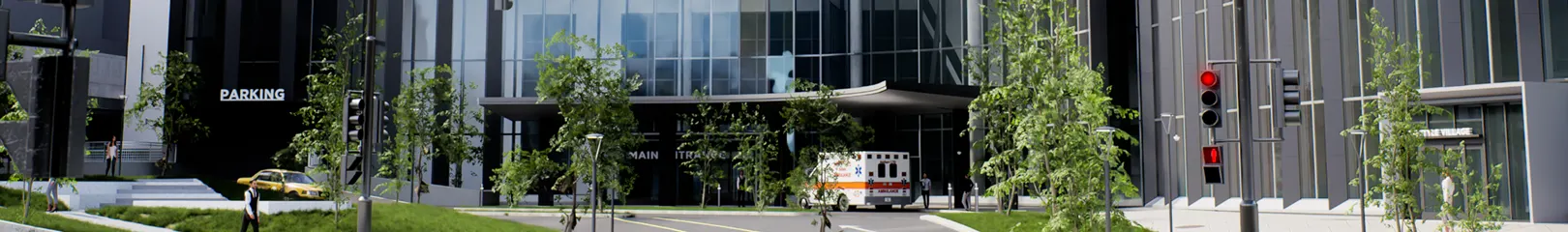

Panel & equipment modeling. Healthcare electrical rooms often serve multiple branches feeding dozens of panels across a floor. SJS models switchgear, panelboards, ATS units, and UPS equipment with accurate clearance zones and feeder routing, so equipment room layout is confirmed before fabrication drawings are issued. On the Advanced Medical Center project in Pittsburgh, the main electrical room required dense MEP coordination in a confined footprint — the model resolved those conflicts before construction began.

Clash detection. A healthcare facility running full coordination — architectural, structural, mechanical, plumbing, electrical, low-voltage — generates thousands of clashes in a first-pass model. SJS runs clash detection within the electrical scope and in cross-discipline coordination, prioritizing clashes that affect emergency power systems, equipment clearances, and accessible maintenance paths. The goal is a clash-free model before shop drawings are issued, not a punch list at the end.

Shop drawings and prefab support. Healthcare projects benefit from prefabrication — controlled conditions, repeatable assemblies, faster floor-by-floor installation. SJS produces shop drawings and prefab packages directly from the coordinated model, covering conduit assemblies, cable tray sections, and panel connections. On healthcare floors where infection control restricts when and where crews can work, prefabrication reduces on-site labor hours in sensitive areas.

Who We Work With on Healthcare Projects

Healthcare construction teams typically include a general contractor managing schedule and trade coordination, a mechanical and electrical subcontractor holding the self-perform scope, and a design team that continues issuing RFIs and design revisions through construction. Electrical BIM sits at the intersection of all three — translating design intent into buildable geometry while managing scope changes in real time.

Electrical contractors

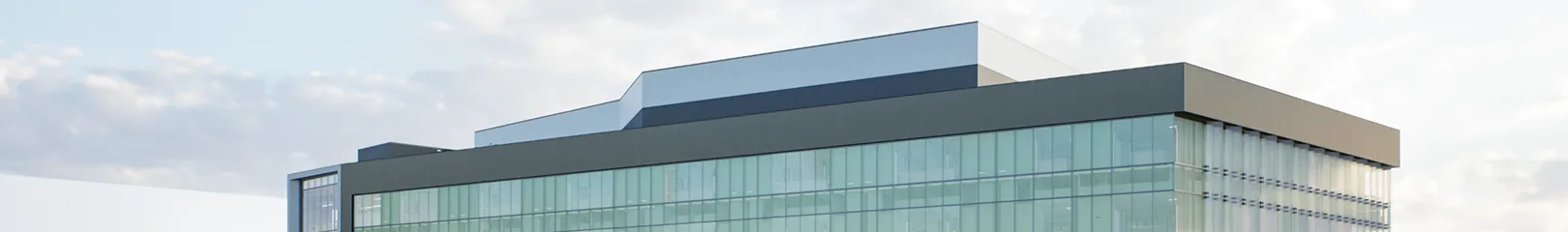

The electrical sub on a hospital project carries the coordination risk. SJS functions as the BIM production arm for the electrical contractor — building the model, running clashes, issuing shop drawings, and managing revisions — so the contractor's field team can focus on installation. On the Modern Medical Center in Atlanta (500,000 sq ft), SJS handled layout drawings, modeling and coordination, and shop drawings for the full electrical scope.

General contractors

GCs managing healthcare projects need confidence that the electrical coordination will hold the overall project schedule. SJS operates within the project's BIM Execution Plan, attends coordination meetings, and delivers models on the schedule the GC is managing to. The Advanced Medical Center in Pittsburgh (900,000 sq ft) required coordination against a design that revised three times — SJS absorbed those revisions without breaking delivery commitments.

MEP contractors and engineering firms

Design engineers and MEP contractors working healthcare projects often need a BIM partner who understands the electrical systems in enough detail to flag constructability problems in the design phase, not just model what's on the drawings. SJS brings field-origin expertise — the company was founded by someone who started in the field and built the team from project experience up.

Electrical BIM & VDC Services for Healthcare Projects FAQ

What LOD is typically required for electrical BIM on a hospital project?

Most healthcare projects require LOD 350 or LOD 400 for electrical systems, with LOD 400 standard where prefabrication is planned. At LOD 400, conduit runs include accurate bend locations, support spacing, and connection points — sufficient to produce shop drawings directly from the model. The BIM Execution Plan issued at project start will define the required LOD by system.

How is branch circuit separation modeled for NFPA 99 compliance in a healthcare BIM model?

Each branch — life safety, critical, equipment, and normal — is modeled as a separate system within the electrical model, color-coded and traceable from the ATS or generator to the point of use. This separation is visible in both the 3D model and the coordination drawings, allowing the engineer of record and the AHJ to verify compliance without field measurement.

How does SJS coordinate imaging suite equipment power requirements during BIM?

Manufacturer submittals for MRI, CT, and cath lab equipment are incorporated into the model before electrical room layout is finalized. Dedicated panel locations, feeder sizes, isolated ground paths, and equipment clearance zones are modeled against the architecture and structure — changes to equipment specifications trigger model updates rather than field-level reroutes.

What is the typical timeline for electrical BIM coordination on a 500,000 sq ft hospital?

Timeline depends on design completeness, the number of active RFIs, and the project's coordination schedule. On a project of that scale, SJS typically begins with a detailed BIM kickoff to align on the BEP, then works in floor-by-floor coordination packages timed to the construction sequence. A complete coordinated model for a 500,000 sq ft healthcare facility has been delivered within the construction schedule — scope and design stability are the primary variables.

How are model revisions handled when healthcare design changes mid-construction?

Design revisions on healthcare projects are common — owner scope changes, equipment substitutions, and code-driven adjustments occur throughout construction. SJS tracks revisions against the issued-for-construction drawings, updates the affected model sections, re-runs clashes in impacted areas, and reissues shop drawings for changed scope. The revision cycle is managed within the project's coordination platform (Revizto, ACC, or equivalent) so all trades see updates in real time.
