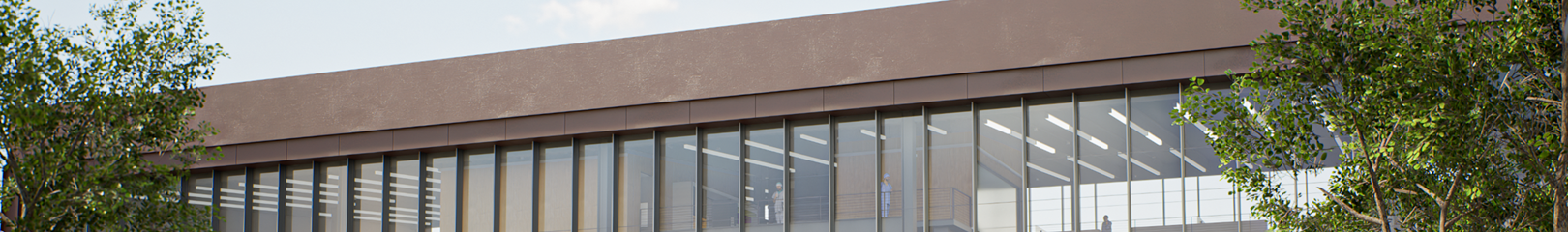

Laboratory construction concentrates more electrical systems per square foot than almost any other building type — redundant power feeds, isolated ground buses, low-voltage monitoring networks, and cleanroom lighting all competing for the same ceiling space. SJS VDC handled exactly this coordination challenge at the Advanced Laboratory Facility in Brookhaven, NY: 110,000 sq ft of electrical, telecom, AV, fire alarm, and security systems fully modeled and coordinated to a clash-free BIM deliverable.

Our BIM team delivers coordinated models that enable installation teams to work efficiently and reliably, ensuring safety, adaptability, and performance in every laboratory project.

Critical Project Requirements

  • Power & Safety Systems: Labs require specialized power distribution, emergency supply, clean circuits, and robust grounding to protect sensitive instruments.

  • Lighting: Higher illumination levels and flexible task lighting ensure adaptability for intricate laboratory tasks.

  • Coordination: Electrical systems must be modeled with constructability, timelines, and prefabrication in mind, ensuring compliance with strict codes and standards.

Here's what our satisfied customers say

Joe Migliore

Confirmed review

CAD & BIM Manager / Pre-Fab Manager

“Thank you for your support to us on the DPI project. We know that there is a very good VDC team out there that we can count on when we have more than we can handle.”
Logo

Clint Sutherland

Confirmed review

Project Designer

“Big thanks for the Tumblr, the one-of-a-kind coaster, and the thoughtful vibe overall — really appreciated.”
Logo

Michael Topper

Confirmed review

Project Manager

“I want to express my sincere thanks for all the efforts the SJS Team made in 2024. The project has been demanding, but without hesitation, you met each challenge head-on and delivered an exemplary product.”
Logo

Michael

Confirmed review

Project Manager

“You and the SJS Team are like a breath of fresh air when it comes to coordination companies. When SJS arrives there is a resurgence of hope. Keep up the great work. Have a great weekend!”
Logo

Chandler Denton

Confirmed review

Project Manager

“Hey! I've been very impressed with how well your team is operating. I really appreciate how quickly you guys have been able to jump in get things moving with this project.”
Logo

Matthew

Confirmed review

Virtual Designer

“We're thoroughly impressed by your exceptional work on the conduit layouts. The attention to detail sets your work apart. Thank you for delivering such outstanding results!”
Logo

Electrical Coordination Challenges in Laboratories Projects

Laboratory projects generate electrical coordination pressure because the building's functional requirements — contamination control, power quality, equipment flexibility — impose constraints on routing, grounding, and system separation that go well beyond standard commercial construction. A conduit run acceptable in an office building may be a code violation or a source of EMI interference in a lab environment.

  • Dense MEP and Utility Coordination — Labs concentrate electrical, mechanical, plumbing, and specialty gas lines in the same interstitial spaces. Ceiling plenum and utility corridors fill fast; every electrical routing decision affects three other trades.
  • Strict Power Reliability Requirements — Critical lab processes require uninterrupted power. Normal, emergency, and UPS circuits must be routed, modeled, and coordinated separately, with clear panel-to-load paths documented throughout the model.
  • Coordination with Specialized Laboratory Equipment — Large analytical instruments, fume hoods, biosafety cabinets, and centrifuges each carry specific electrical connection requirements. Equipment rough-in locations must be modeled against architectural layouts before conduit is set.
  • Flexible Lab Layouts and Future Changes — Lab buildings are designed for reconfiguration. Electrical infrastructure — cable tray spine systems, modular branch circuits — needs to be modeled with future moves in mind, not just the day-one layout.
  • Cleanroom and Controlled Environment Requirements — Cleanroom electrical installations restrict conduit types, penetration sealing methods, and fixture mounting configurations. These constraints require close coordination with the architectural and mechanical teams during BIM.
  • Grounding and Electrical Noise Control — Sensitive analytical instruments require dedicated ground references and separation from noisy circuits. Grounding electrode conductors and isolated ground runs must be tracked through the model to prevent field improvisation.
  • Low-Voltage and Monitoring System Integration — Lab facilities carry dense low-voltage infrastructure: building automation, environmental monitoring, security, and lab data networks. Routing separation from power systems must be maintained and documented in the model.
  • Renovation in Active Lab Facilities — Phased renovation work in occupied labs demands sequence-based electrical modeling. Temporary power paths, shutdown zones, and cutover sequences are coordination work that belongs in the BIM model, not on a whiteboard.

How We Approach Electrical BIM for Laboratories Projects

The difference in electrical BIM for lab projects starts at the coordination setup stage: systems that would be grouped together on a typical commercial project — general power, low-voltage, grounding — need to be modeled as separate, trackable layers because code compliance and equipment function depend on the separation being documented and maintained through construction.

Conduit and cable tray routing Laboratory ceilings and utility corridors leave little room for field adjustment. We model conduit runs to scale against confirmed MEP backgrounds, routing power and low-voltage systems with required separation maintained throughout. On the Brookhaven Advanced Laboratory Facility, this included routing conduit along inclined structural steel beams in office atriums — geometry that required precise coordination before any field work began.

Panel and equipment modeling Lab projects often include multiple panel types — normal power, emergency, UPS, isolated ground — serving equipment with specific connection requirements. We model each panel with confirmed breaker schedules and trace circuits to load points, so the field team has a complete, accurate picture of what lands where.

Clash detection Lab buildings concentrate trades in tight plenum and interstitial zones. We run clash detection in Navisworks against all confirmed MEP backgrounds, resolving conflicts before they reach the field. At the Brookhaven project, this produced a clash-free model across electrical, telecom, AV, fire alarm, and security systems within a 110,000 sq ft facility.

Shop drawings and prefab support Field teams on lab projects benefit from detailed shop drawings precisely because field improvisation is restricted — by cleanroom protocols, by grounding requirements, by active-facility access windows. We produce conduit layout drawings, spool sheets, and panel schedules directly from the coordinated model, giving installers what they need before they enter the space.

Who We Work With on Laboratories Projects

On laboratory builds, the electrical BIM scope sits at the intersection of the electrical contractor's install logic, the mechanical and plumbing trades' routing needs, and the owner's equipment procurement timeline. Electrical coordination can't be resolved in isolation — it depends on confirmed equipment cut sheets, current MEP backgrounds, and active communication with the design team.

Electrical contractors

The coordination burden on lab projects is heavier than on standard commercial work: more system types, tighter routing constraints, and equipment rough-ins that arrive late in the design process. We carry the BIM and shop drawing workload so the field team has accurate, clash-resolved drawings without pulling their own coordinators off the floor.

General contractors and MEP contractors

On lab projects, GCs and MEP leads need electrical BIM that integrates cleanly with the full MEP model and tracks against the equipment procurement schedule. We work within the project's BIM Execution Plan, attend coordination meetings, and maintain model updates against issued-for-construction documents.

Engineering and design firms

Design teams on laboratory projects specify the performance requirements; translating those into a constructible electrical model is the coordination challenge. We work from design-intent drawings to produce coordinated models that meet NEC requirements, owner equipment specifications, and the routing constraints imposed by cleanroom or controlled-environment zones.

Building owners and facility managers

Owners of research or clinical lab facilities need BIM deliverables that remain useful after construction — for future reconfigurations, equipment moves, and renovation permitting. We deliver as-built-quality models organized to support long-term facility management, not just construction coordination.

Electrical BIM & VDC Services for Laboratories Projects FAQ

What BIM deliverables does an electrical contractor typically need for a laboratory project?

The core deliverables are a coordinated 3D Revit model, Navisworks clash detection reports, conduit layout drawings, spool sheets for prefabricated assemblies, and panel schedules tied to confirmed load schedules. For lab projects specifically, low-voltage and grounding systems are typically modeled as separate layers and delivered with their own drawing sets.

How do you handle electrical BIM coordination when lab equipment specs aren't confirmed yet?

We model to the equipment rough-in zones defined in the current design documents and flag connections that depend on unconfirmed cut sheets. As equipment data arrives, those connections are updated in the model and the affected coordination zones are re-checked for clashes. Holding early coordination work hostage to late equipment data is one of the main schedule risks on lab projects; the model has to move forward with clearly tagged assumptions.

Can electrical BIM support a renovation project in an occupied laboratory facility?

Yes — in active facility renovations, the model is used to plan phased work sequences, document temporary power paths, and define shutdown zones. This is more coordination work than a greenfield project, but the BIM deliverable is more valuable precisely because field teams can't improvise around occupied lab spaces.

What's the correct separation distance between power and low-voltage conduit in a laboratory setting?

NEC 800 and 725 set baseline separation requirements, but laboratory projects often layer owner-specific standards on top — particularly for facilities with sensitive analytical instruments or EMI-sensitive equipment. We model to the separation requirements in the project's electrical specifications, not just NEC minimums, and flag zones where separation can't be maintained for RFI resolution.

How does electrical BIM help with grounding and isolated ground systems in research labs?

Isolated ground runs and dedicated grounding electrode conductors need to be tracked from the source panel to each receptacle throughout construction. Modeling these as discrete elements in the BIM — rather than generic home-run notes on a 2D drawing — gives the electrical contractor a complete installation map and creates a record the facility team can reference for future equipment moves.
