Electrical Coordination Challenges in Residential High-Rise Projects

Residential high-rise generates electrical coordination pressure through the combination of vertical scale and repetitive floor layouts. A decision made on a typical floor — conduit routing through a bathroom wet wall, panel placement in a unit corridor — multiplies across dozens of levels. Errors discovered in the field cannot be corrected on one floor without propagating the fix upward through the entire stack.

• Vertical Power Distribution Coordination — Riser conduits, busway sections, and distribution panels must be stacked precisely across every floor. Misalignment at any level forces rerouting through shaft space already shared with plumbing, HVAC, and telecom risers.
• Limited Shaft and Ceiling Space — Residential towers allocate minimal ceiling clearance in corridors and unit spaces. Cable trays, conduit bundles, and low-voltage pathways must be routed within 6–10 inches of usable vertical space where sequencing against mechanical ductwork and plumbing is non-negotiable.
• Coordination with Repetitive Floor Layouts — Typical floor plates look identical on architectural drawings but accumulate small variations — shifted walls, relocated MEP rooms, structural transfer conditions — that invalidate a copy-paste approach. Each floor requires verified coordination, not assumptions carried forward from the floor below.
• Apartment Unit Electrical Planning — Unit layouts require precise panel locations, circuit counts, and in-slab conduit placement for fixtures, outlets, and data drops. In-slab routing requires Trimble point data and early alignment with the concrete subcontractor before the pour.
• Emergency Power and Life Safety Systems — Generator transfer switches, emergency panels, and egress lighting circuits must be modeled separately and routed to meet NFPA 70 separation requirements. In a 30-story building, running compliant life safety feeders without encroaching on normal power pathways requires deliberate 3D planning from the start of design.
• Low-Voltage System Integration — Fire alarm, access control, structured cabling, and AV systems share riser space with power. In residential high-rise, this convergence is dense: every unit has data, intercom, and fire alarm devices, all feeding back through the same floor telecom rooms.
• Electrical Room and Utility Coordination — Electrical rooms at grade and on transfer floors must accommodate switchgear, transformers, and metering within dimensions fixed by the architect. Working space per NEC Article 110, equipment access, and conduit entry points all require 3D confirmation before rooms are framed.
• Parking Garage and EV Charging Coordination — Podium and below-grade garages are now expected to carry EV charging infrastructure. Feeder routing from the main electrical room to garage panels, and circuit distribution to individual stalls, requires early coordination with structural elements and waterproofing assemblies.

How We Approach Electrical BIM for Residential High-Rise Projects

For residential high-rise, the BIM approach centers on locking down the typical floor before construction advances. Once a typical floor model is coordinated and field-verified, it becomes the controlled template for repetitive floors above — any deviation is flagged as a deliberate exception, not an accumulated error.

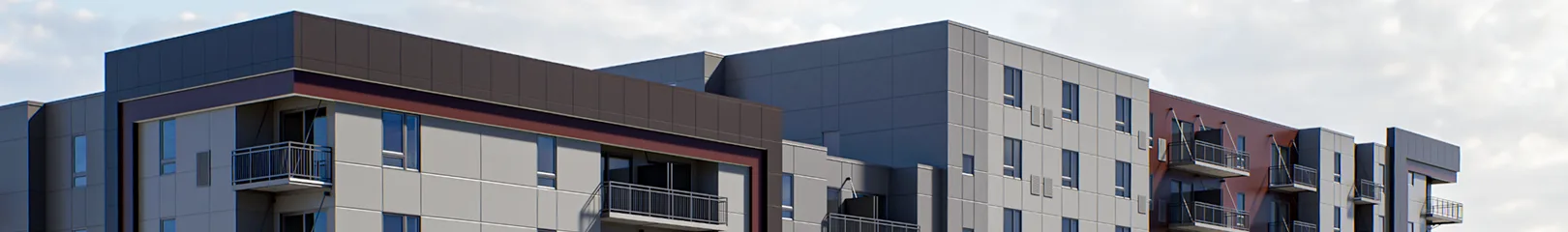

Conduit and cable tray routing on residential high-rise projects works on two layers: in-slab conduit for unit layouts, and overhead routing for corridor and common-area systems. SJS models both layers in full 3D, coordinating in-slab stub-outs against structural slab thicknesses and overhead bundles against MEP sequencing. On the Denver project, Blue Banger inserts were pre-planned in the model, which reduced field layout hours and eliminated on-site marking errors across the in-slab pour sequence.

Panel and equipment modeling at residential high-rise scale involves electrical rooms on multiple floors, transfer switchgear, emergency distribution panels, and unit-level load centers. SJS models every piece of equipment to actual manufacturer dimensions — including door swing clearances and NEC working space — so the field doesn't discover that a specified panel conflicts with mechanical equipment already installed.

Clash detection in residential high-rise requires a priority hierarchy. Life safety feeders and in-slab conduit are structural constraints fixed before concrete is poured; they can't be renegotiated after the fact. SJS runs clash detection in federated models against structural, mechanical, plumbing, and low-voltage disciplines with a clear priority sequence that reflects the actual field install order.

Shop drawings and prefab support generate direct labor savings on repetitive floors. When conduit assemblies, hanger configurations, and pull box locations are standardized in the model, the prefabrication shop produces consistent assemblies across dozens of identical floors. SJS delivers Trimble layout files alongside shop drawings so crews have verified point locations for every slab penetration and hanger anchor.

Who We Work With on Residential High-Rise Projects

Residential high-rise projects typically run with a general contractor managing a design-assist or design-bid-build structure, an electrical contractor carrying all power and low-voltage rough-in and trim, and separate subcontractors for fire alarm or structured cabling. Electrical BIM sits at the intersection: it defines the coordination model each trade works from and generates the shop drawings and layout data the electrical crew takes to the field.

Electrical contractors on residential high-rise jobs carry the densest combination of scope — in-slab work, vertical risers, unit rough-in across hundreds of repetitive floors, and trim-out coordination with finish schedules. SJS works directly with electrical contractors from pre-construction through shop drawing release, building the coordination model and producing prefab-ready shop drawings and Trimble point files matched to their install sequence.

General contractors and MEP coordinators need a model they can rely on for federated clash detection. SJS delivers fully coordinated electrical models to Autodesk Construction Cloud or the platform specified in the BIM execution plan, participates in coordination meetings, and maintains an open issues log — so the GC has a documented coordination record alongside the model.

Residential developers and ownership groups increasingly require BIM deliverables for both construction coordination and facilities management handoff. SJS delivers models with metadata structured for COBie handoff or owner-defined asset management requirements, depending on what the project's BIM execution plan specifies.
